Description

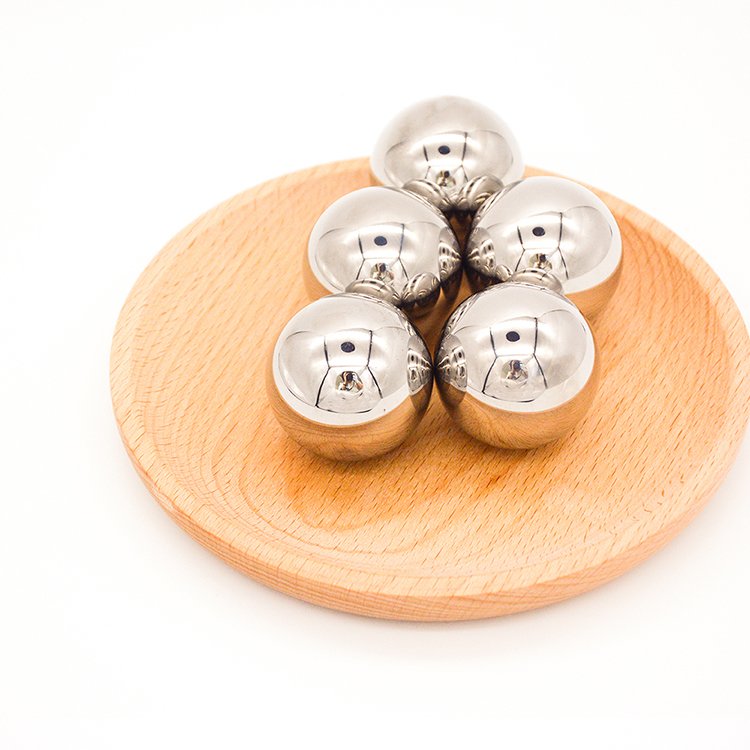

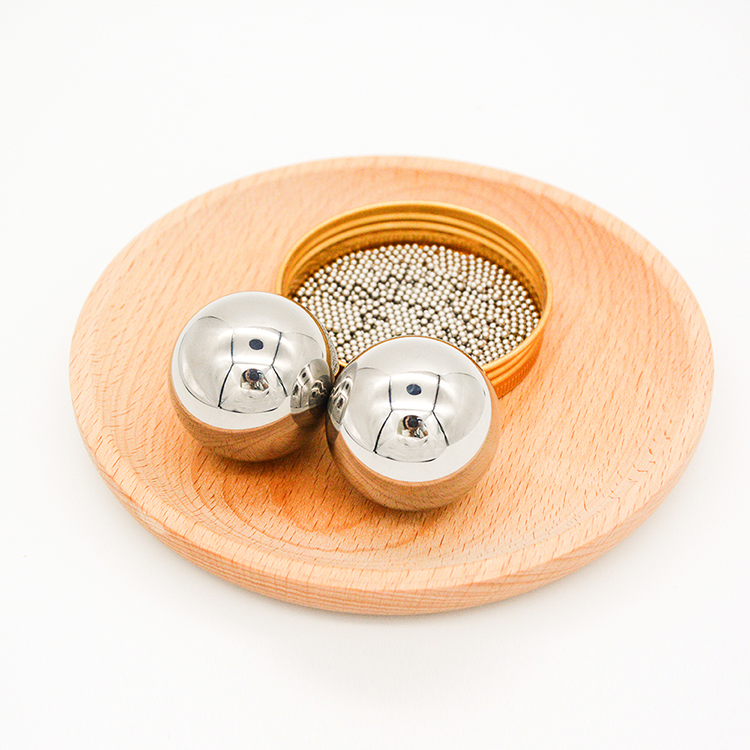

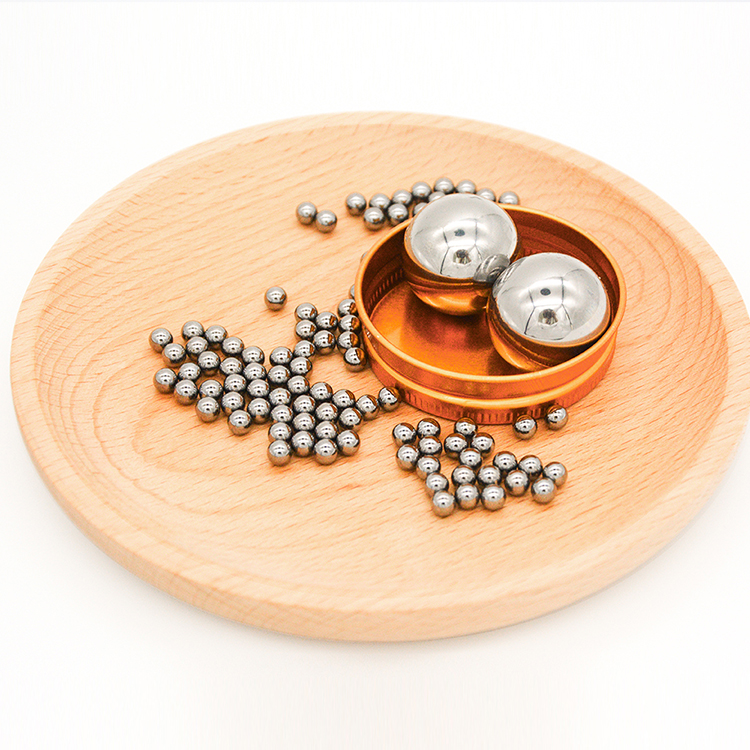

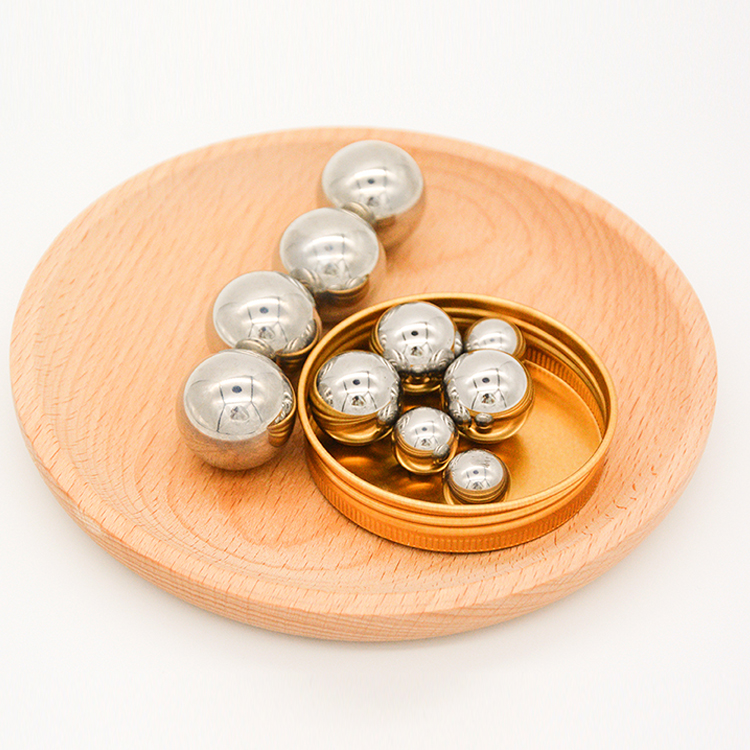

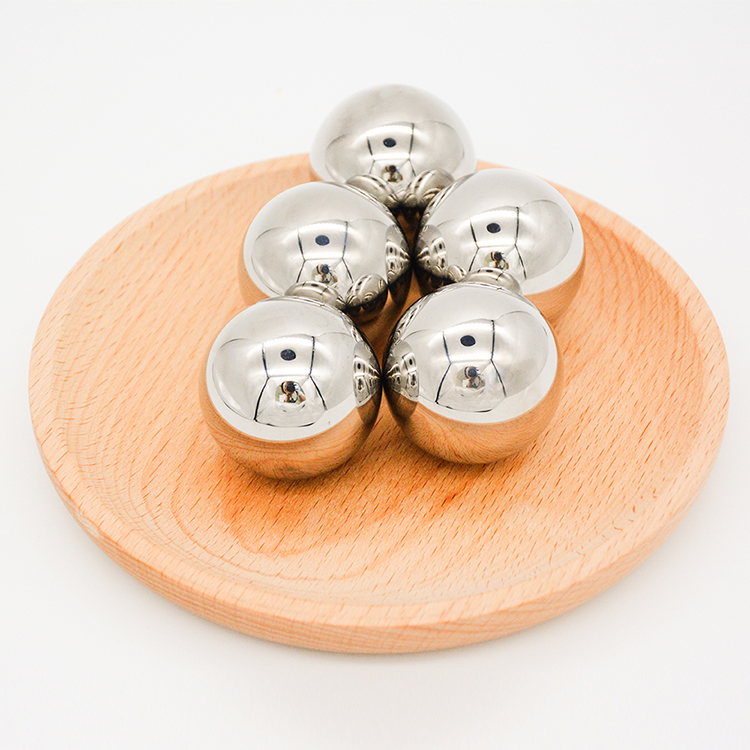

1065 Hardware Grinding Carbon Steel Ball
Carbon steel can be divided into soft carbon steel ball (no heat treatment) and hard carbon steel ball (with heat treatment). It can be also divided into high carbon steel ball and low carbon steel ball, according to the carbon content.
The products has good surface smoothness and standard hardness, which are being widely used on the application like bearings, bicycles, automative industry, lockings, linear guidings etc.
Our products are being widely exported to Europe, USA, Japan, South Korea, Middle Asia and Southeast Asia.
Parameter
Material | Chemical composition(%) | |||||||
C | Si | Mn | Cr | P | S | Ni | Cu | |
10 | 0.07 to 0.13 | 0.17 to 0.37 | 0.35 to 0.65 | ≤0.15 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 |
15 | 0.12 to 0.18 | 0.17 to 0.37 | 0.35 to 0.65 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 |
20 | 0.17 to 0.23 | 0.17 to 0.37 | 0.35 to 0.65 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 |
45 | 0.42 to 0.50 | 0.17 to 0.37 | 0.50 to 0.80 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 |
85 | 0.82 to 0.90 | 0.17 to 0.37 | 0.50 to 0.80 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.30 | ≤0.25 |
Country | China | USA | Germany | Russia | Japan |
Material | GB/T 699-2015 | ASTM A29-A29M-2016 | ISO 683-18-2014 | GOST-1050-1988 | JIS G 4051-2005 |
Material | 10 | 1010 | C10E | 10 | S10C |
15 | 1015 | C15E | 15 | S15C | |
20 | 1020 | C22E | 20 | S20C | |
45 | 1045 | C45 | 45 | S45C | |
85 | 1084/1085 | * | * | * | |
Production Capacity | *Steel ball quality standard: ISO 3290-1-2014,GB/T308.1-2013 (JB/T5301-3007, DIN 5401-2002,ABMA Std. 10A - 2001 | ||||
